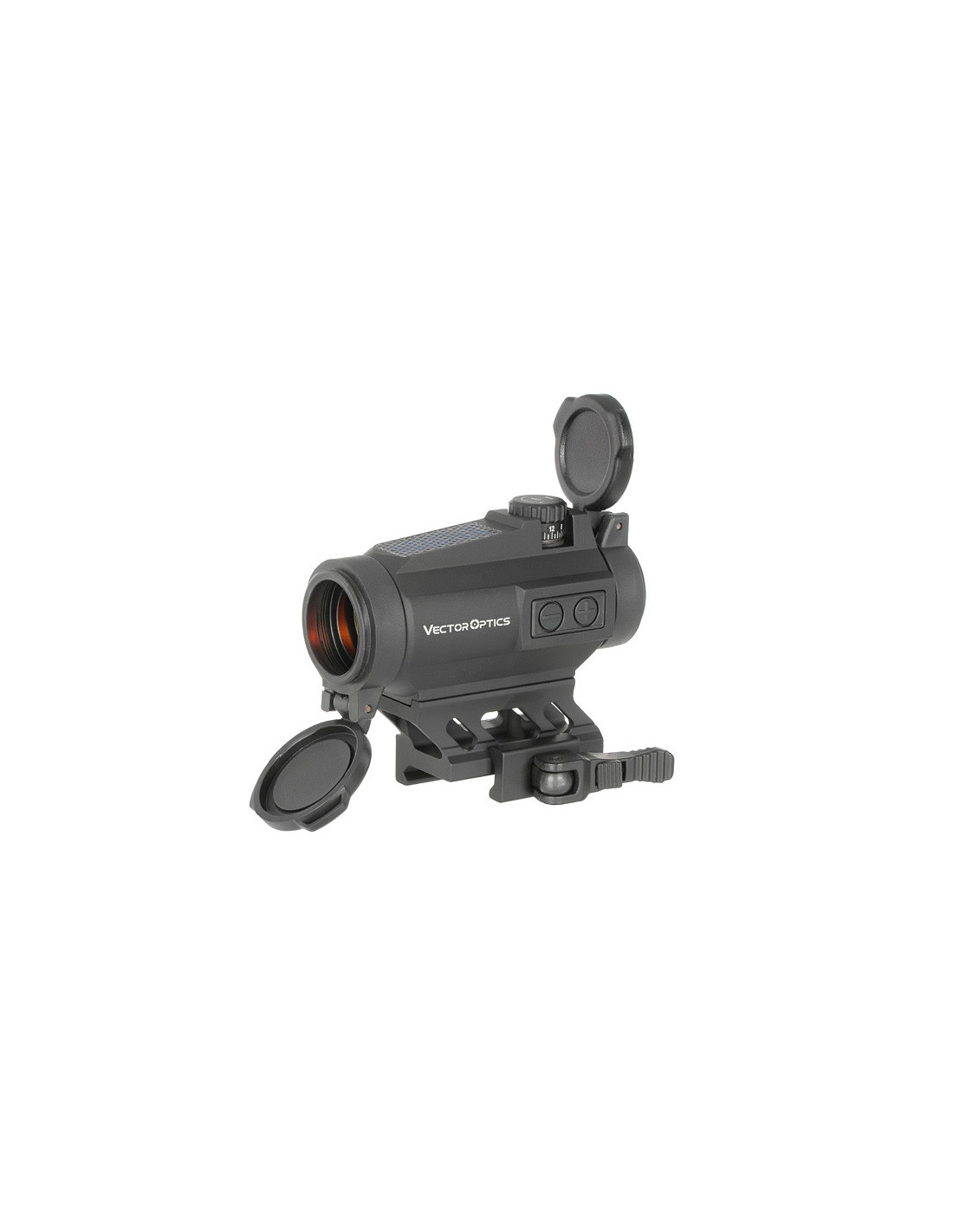

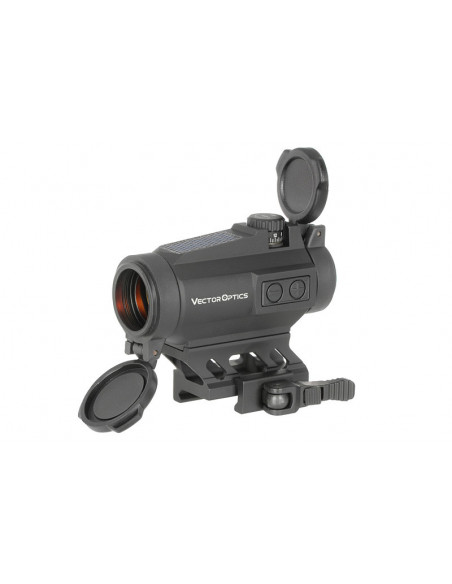

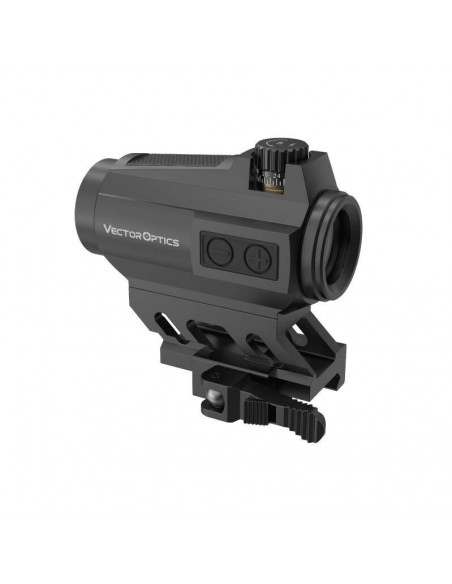

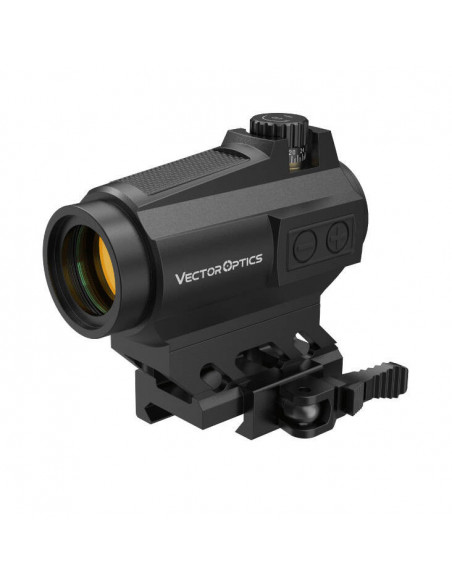

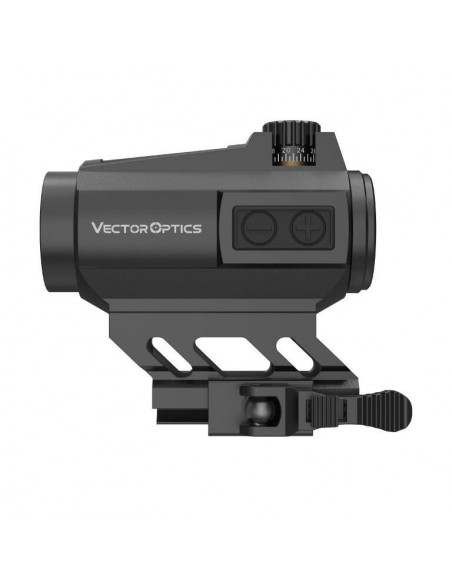

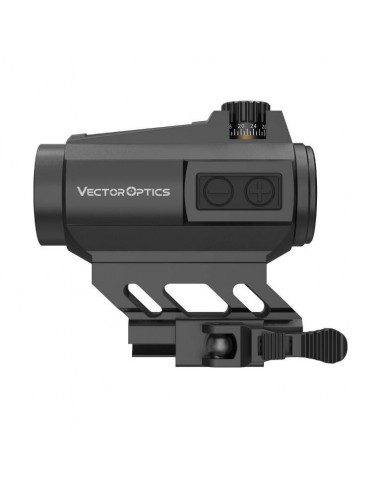

Closed Collimator Maverick-II Plus 1x22 SOL Solar Panel RDS Vector Optics SCRD-PS12
Closed collimator with 2MOA size red dot and target circle. A sight with standard as well as additional high mount, created for AR platform weapons. The collimator owes its strength to its 6061 T6 aluminum alloy construction. The collimator is IPX4-rated waterproof, so it can be used in harsh weather conditions.
The lens of the collimator has been multi-coated for increased durability against damage and better visibility performance. The lens produced in this way eliminates the apparent deflection of objects and other distortions. In addition, the interior of the sight has been filled with nitrogen to prevent lens evaporation. At the same time, it is worth taking care of the maintenance of the whole, in which a gun cleaning kit can help.
The sight is powered by a single CR2032 battery, which is replaced from the side by unscrewing the appropriate nut. Thanks to this solution, the settings will not be upset when changing the battery. In addition, there is a solar panel on the collimator housing, increasing its potential operating time. Mounting of the sight uses the QD system - Quick Discharge. It allows efficient assembly and disassembly without the use of tools. Low mounting uses screws instead of QD levers.

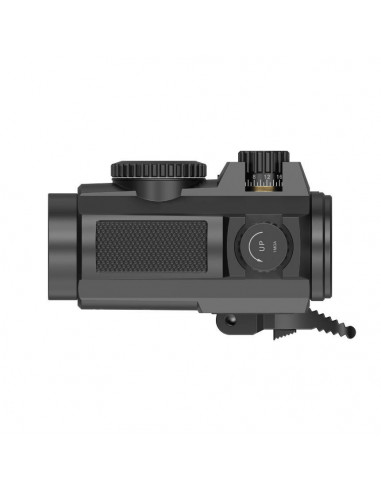

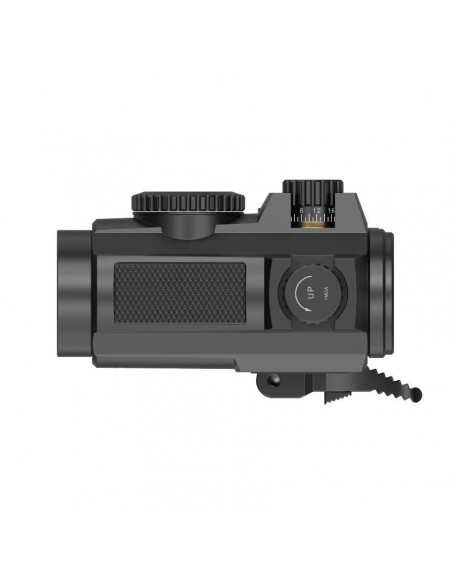

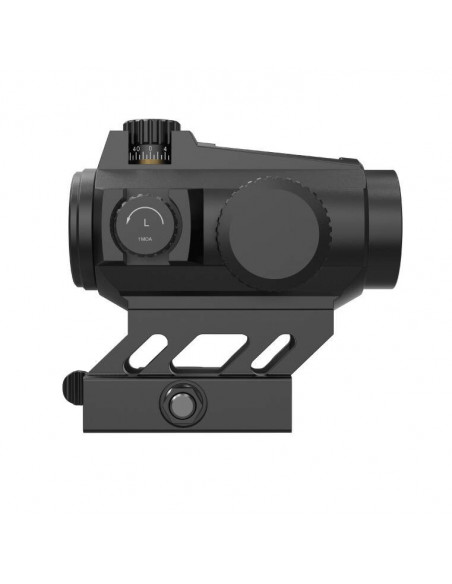

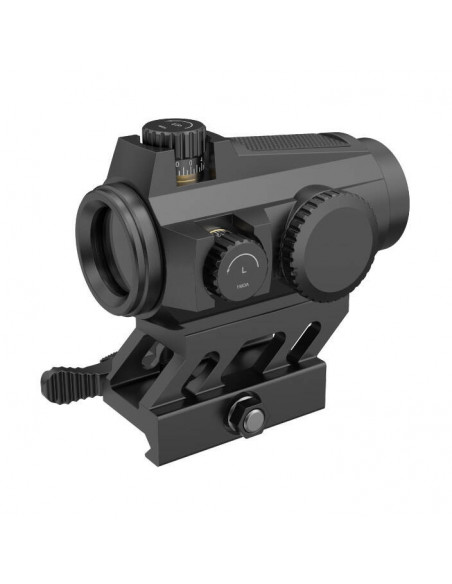

The Maverick-II Plus features a motion sensor for greater control over the sight's operation. This sensor will automatically turn off the sight after a prolonged period of no change in position saving the battery for later. The viewfinder can be adjusted with knobs in the range of +-60MOA, where one click is 1MOA. The sight has shock resistance. The high-mounted sight is 1/3 Co-witness.

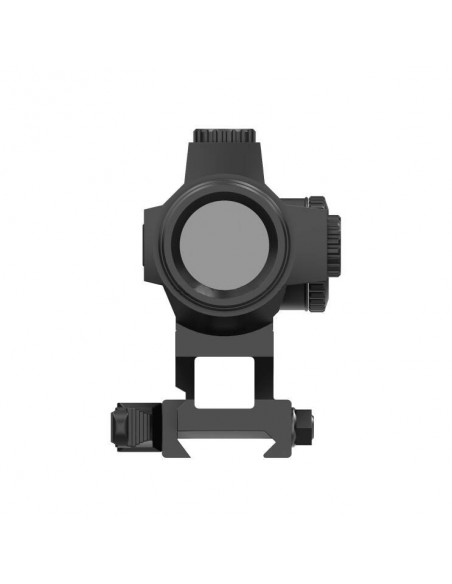

The collimator can operate in the temperature range from -20°C to +55°C. The sight has a 22mm diameter target lens. Its overall design makes for a precise sighting device with comfortable tool-free operation for the high-mount version. The collimator has an 7-level brightness adjustment of the sight dot and one level for night mode.
Features:
- Closed collimator with high mount
- Powered by a single, easily replaceable CR2032 battery
- Solar panel for alternative power supply
- Features an additional low profile mount that does not interfere with the use of the sight
- Three aiming modes - dot, dot with circle, circle
- Red 2MOA size aiming dot and circle for aiming
- 6061 T6 aluminum construction
- IPX4 waterproof construction
- Kit with Picatinny rail mount
- Motion sensor for controlling the collimator
- Features shock resistance
Technical data
Material Aluminum
Dimensions 84x74x51mm
Viewfinder diameter 22mm
Size of aiming point 2MOA point
Magnification 1x
Mounting Picatinny
Picatinny QD
Range of sight adjustment +-60MOA
Brightness adjustment 7 degrees and one for night mode
Power supply CR2032
Solar panel
Working temperature From -20°C to +55°C
Certificate IPX4
Weight 214g
Color Black

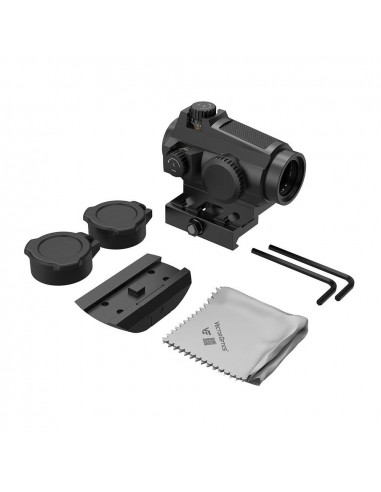

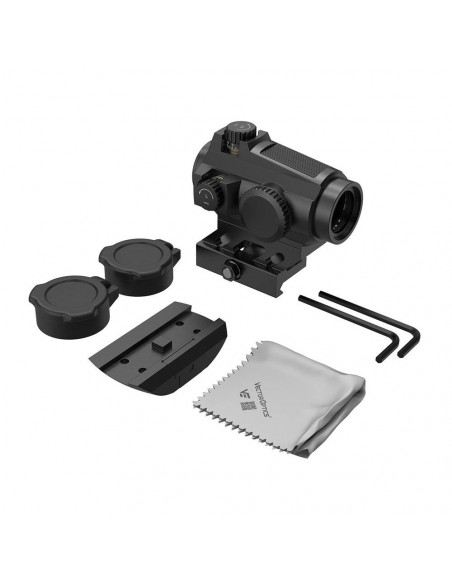

Kit components:
- Maverick-II Plus 1x22 SOL closed collimator.
- Picatinny QD high mount
- Picatinny low mount
- Allen wrench
- Screws
- Lens covers
- Cleaning cloth
